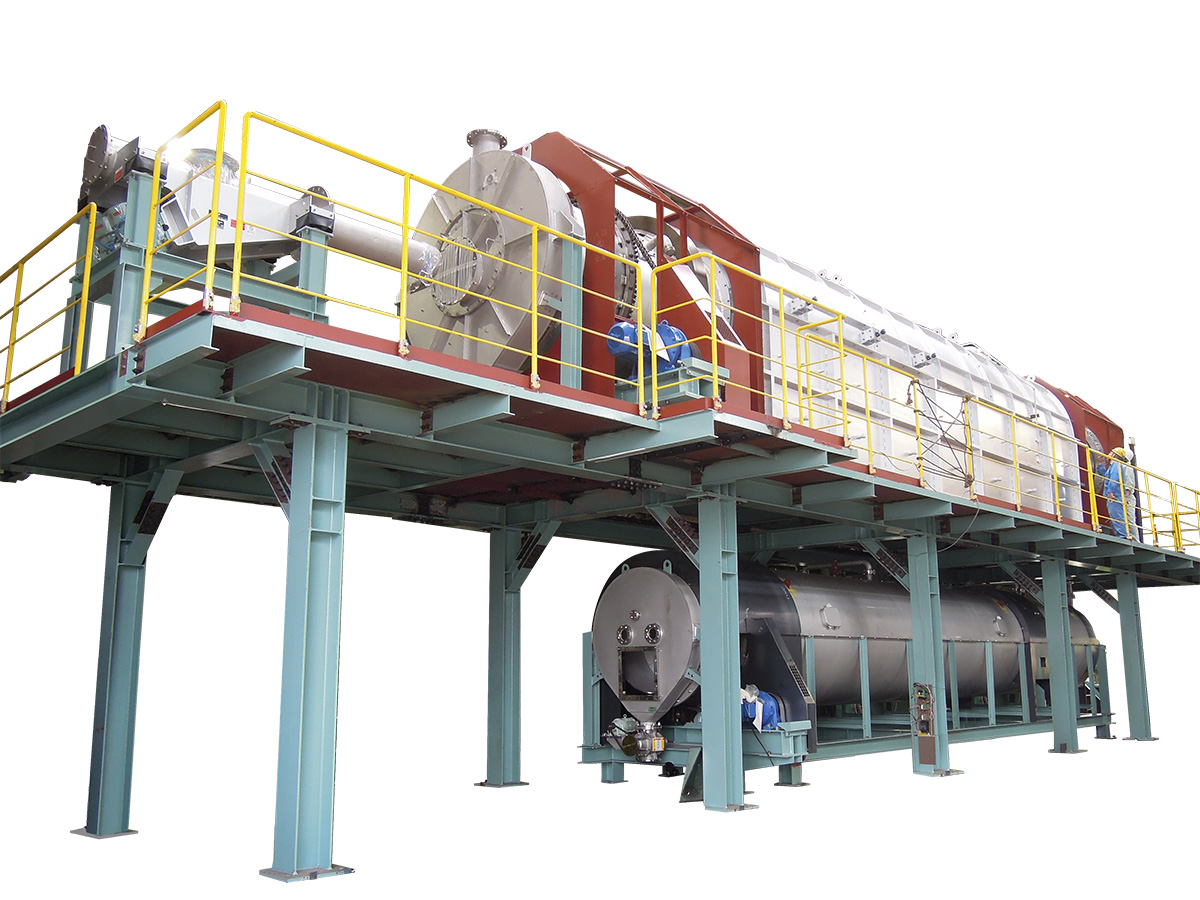

Mass production rotary kiln

Inquiries about product specs, etc.

  • Mass production rotary kiln

Overview

Specification

Mass production: Mass production of a single product is possible due to the employment of a large furnace core tube. Stable product functionality too is achieved.
Running cost: Running costs can be decreased as no tooling materials are used.
Special alloy furnace core tube: It is possible to use a special alloy furnace core tube with incredible corrosion resistance.

Specification

Maximum temperature 1,100 °C
Heat source Electricity or gas
Heating method Indirect heating
Processing time 30 mins.–4 hrs. (variable speed)
Processing load –2,000 kg/hr
Equipment measurements 2,5000 mm (length) × 6,000 mm (width) × 8,000 mm (height)
Maximum furnace core tube measurements Up to an I.D. diameter of 2,000 mm × 16,000 mm
Furnace core tube material Special alloy, SUS310S, and SUS304
Atmosphere Air, oxygen, nitrogen, and argon
