Special alloy rotary kiln

Inquiries about product specs, etc.

  • Special alloy rotary kiln

Overview

Battery material-compatible: The furnace core tube's special alloy suppresses reactions when firing lithium.
Adhesion-preventing construction: The special alloy allows for use of a knocker.
Furnace core tube size increase: Available for use with mass production rotary kilns and the size of the mass production rotary kiln.

Specifications

Maximum temperature 1100℃
Heat source Electricity or gas
Heating method Indirect heating
Processing time 30 mins.–4 hrs. (variable speed)
Processing load 30–2,000 kg/hr
Maximum equipment measurements 2,5000 mm (length) × 6,000 mm (width) × 8,000 mm (height)
Maximum furnace core tube measurements Up to an I.D. diameter of 1,900 mm × 15,000 mm
Furnace core tube material Special alloy
Atmosphere Air, oxygen, nitrogen, and argon

Special alloy furnace core tube sizes

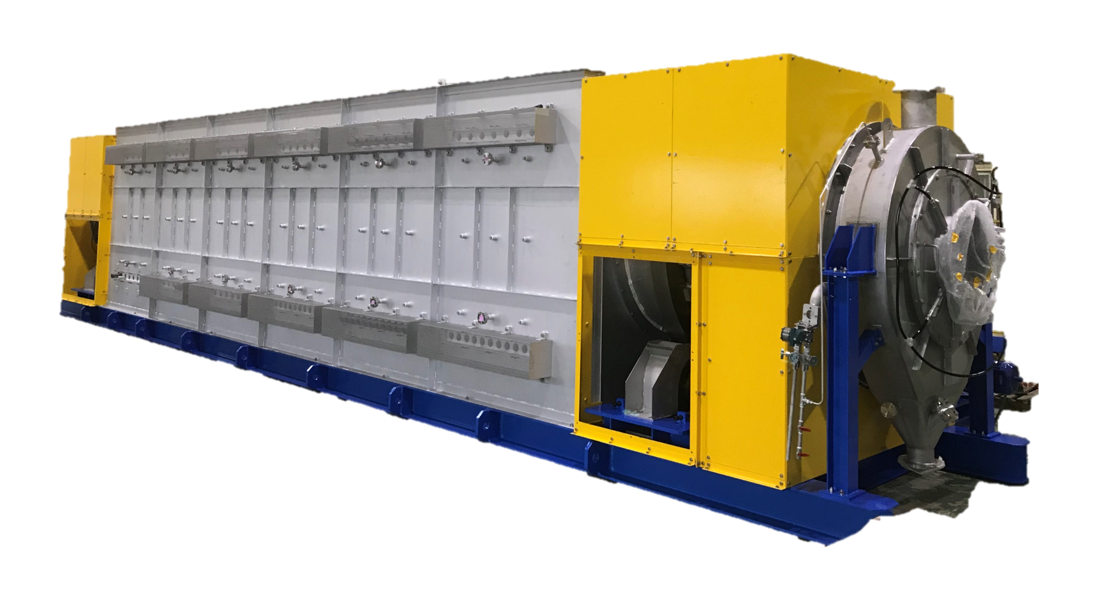

Mass production rotary kiln
Mass production rotary kiln

～IDφ1900×150000（㎜）

Learn more

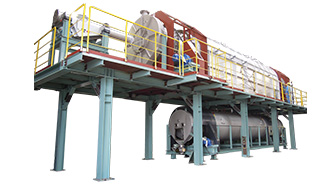

Pilot rotary kiln
Pilot rotary kiln

IDφ270×3000（㎜）

Learn more

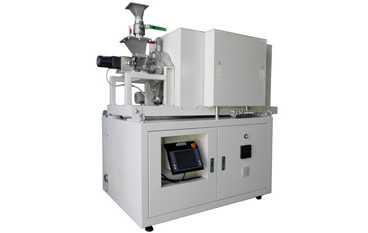

Desktop rotary kiln
Desktop rotary kiln

IDφ110×1490（㎜）

Learn more
